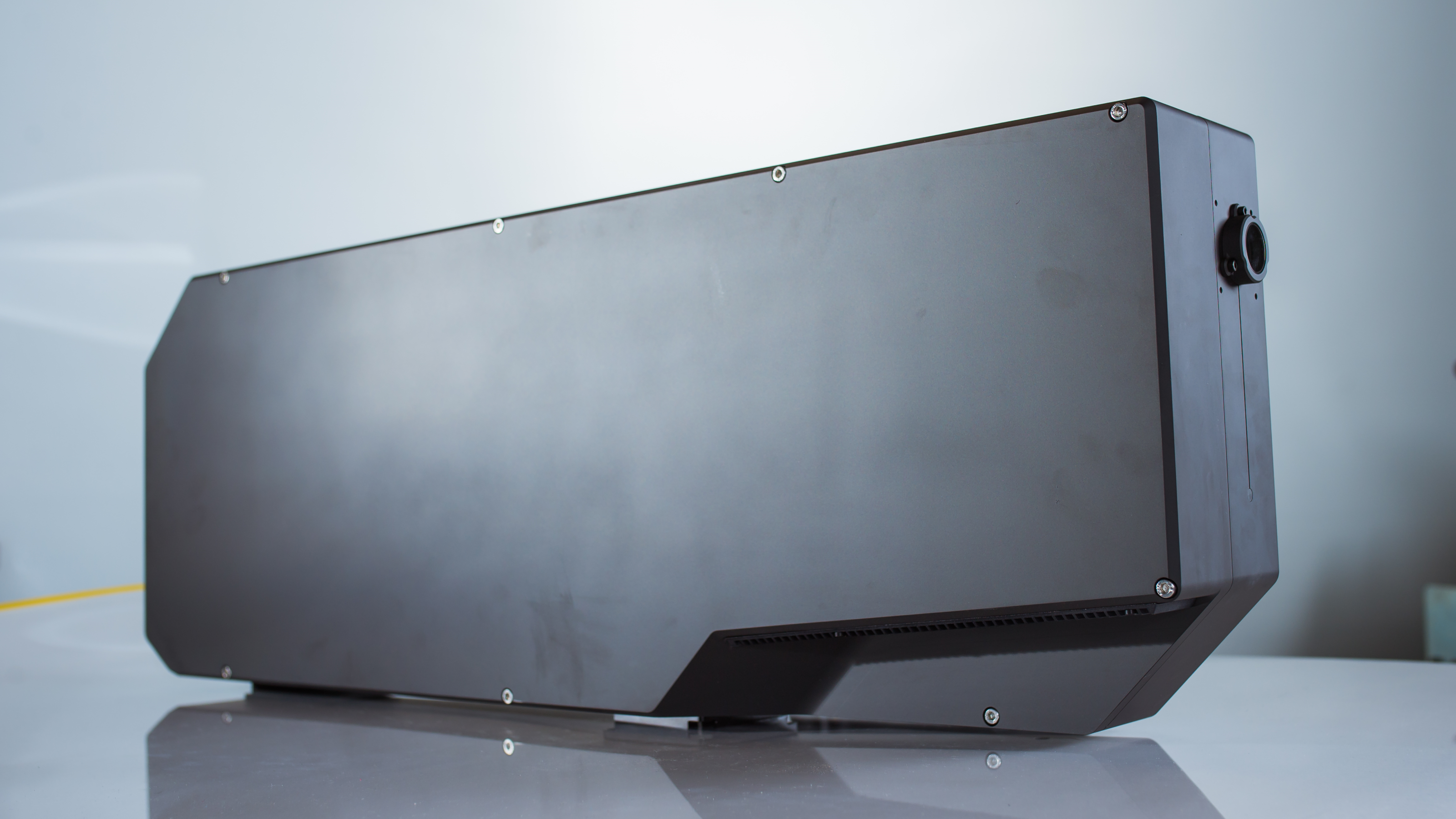

SpeedSorter™ LIBS Sorting Sensor
As demand for recycled aluminum rises, tools like SpeedSorter™ help recyclers to distinguish between aluminum categories and alloys, ensuring the purest product for recycling and moving closer to a true circular economy.
Deepen Your Knowledge
White Paper:
Transform Your Sorting System with the SpeedSorter™ LIBS Sensor
Maximize Your ROI
ROI Document:
Maximizing Profits with LIBS Sorting in Scrap Metal Recycling
Ready to Upgrade Your Sorting Line?
Real-Time Insights, Smarter Sorting
Fast, Automated Sorting
Increase Smelter Turns
Lower Energy Costs
Ocean’s SpeedSorter™is an industrial, high-throughput sensing system designed for in-line, nonferrous scrap sorting in difficult environments. Based on laser-induced breakdown spectroscopy (LIBS), the SpeedSorter quickly determines the chemical composition of each aluminum scrap object and communicates the result to the sorting system. With the SpeedSorter, separation of wrought from cast aluminum, aluminum from magnesium, and alloy class separations like 5xxx and 6xxx are all easily accomplished, where technologies like XRF and XRT do not perform as well.
The SpeedSorter LIBS sensors will customize your exact needs, with consideration of conveyor capabilities, input material composition and size, and desired output and diversion control. Custom separations are available as well. SpeedSorter is designed for single-lane or multi-lane systems, so you can start with one lane or as many as needed to handle the ever-growing market demand for recycled aluminum. As demand for recycled aluminum rises, tools like SpeedSorter™ help recyclers to distinguish between aluminum categories and alloys, ensuring the purest product for recycling and moving closer to a true circular economy.
Product Specifications
| Specifications | SpeedSorter™ LIBS Sorting Sensor |
| Base Elements | Al, Mg |
| Alloying Elements (Testing required in some cases) | Al, Fe, Mg, Mn, Si, Pb, Cr, Ni, Cu, Zn (Sn in special configurations) |
| Laser | Class 4, Class 3R for alignment |
| Spectrometer | High resolution, thermally controlled |
| Working distance | 250 +/- 5 mm from front face of modules |
| Divert signal output | 24V, 0.5A max (can be configured for other signals) |
| Communication | TCP/IP over Ethernet 100 mbps |
| Communication protocol | Available in “SpeedSorter Software Protocol Document” (when available) |
| Control software | Client-side GUI, controls for setting recipes, viewing element ratios, number of pieces sensed/diverted, processed spectra, laser status, system temps, error and fault messages, saving data on device. Control up to 10 modules in Tabs, certain operations performed globally. |
| Memory | Onboard memory for saving several hours data per session |
| Power | 24VDC 600W (din rail mount power supply included) |
| Laser safety | BNC remote laser interlock, E stop, onboard and remote laser status LEDs |
| Ventilation requirements | 150 CFM per module clean filtered air |
| Installation requirements | Supply of ~60 CFM clean filtered air to recommended lens air shield (requirement and design depends on installation parameters) |
| Ambient operating conditions | 5 °C to 30 °C non-condensing 25%-85% RH |
| Storage conditions | -10 °C-65 °C non-condensing 25%-85% RH |
| Dimensions | 90 cm x 12 cm x 30 cm (35 cm with back handle) |
| Weight | ~28 kg |
| Applications | Alloy class separation Aluminum, magnesium and titanium analysis Incoming scrap metal identification Light metals analysis and sorting Nonferrous scrap metal recycling Positive material identification Product scrap conversion |
